Simvascular

软件功能

Simvascular 是唯一一款完全开源的软件包,提供从医学图像数据分割到患者特定血流模拟和分析的完整流程.

  • 模型构建
  • 手动路径识别和分割
  • 使用机器学习进行自动分割
  • 自动表面模型生成
  • 使用高级选项进行网格划分(例如边界层、局部细化)
  • 用于血管血液动力学 3D 模拟的高性能有限元求解器
  • FSI (流固耦合)
  • CMM (耦合动量法)
  • ALE (任意拉格朗日法)
  • 动脉壁固定的 Navier-Stokes 方程
  • 高性能有限元求解器心脏建模
  • 电生理学
  • 主动收缩
  • 模型降阶
  • 0D 求解器
  • 1D 求解器
  • 结合 0D 和 3D 模型来模拟生理边界条件

应用程序套件

SimVascular

用于实现基于图像的管道的所有组件的交互式应用程序

svSolver

并行计算流体动力学 (CFD) 有限元求解器,结合边界条件,可用于血流模拟

MultiPhysics

并行多物理有限元求解器,包括基于 ALE 的流固耦合 (FSI),专为心血管系统的计算建模而设计

svOneDSolver

可变形一维血管网络血液动力学的降阶求解器

svZeroDSolver

血管网络零维集中参数模型中血流动力学的降阶求解器

下载 Simvascular

License Terms


文档

技术支持

Ask questions and interact with users on our public forum.

View our GitHub repository and suggest new features or report bugs.

参与项目

SimVascular is an open-source project and we welcome contributions! All development happens in our solvers' GitHub repositories. Please read our Code of Conduct and Contributing Guidelines.

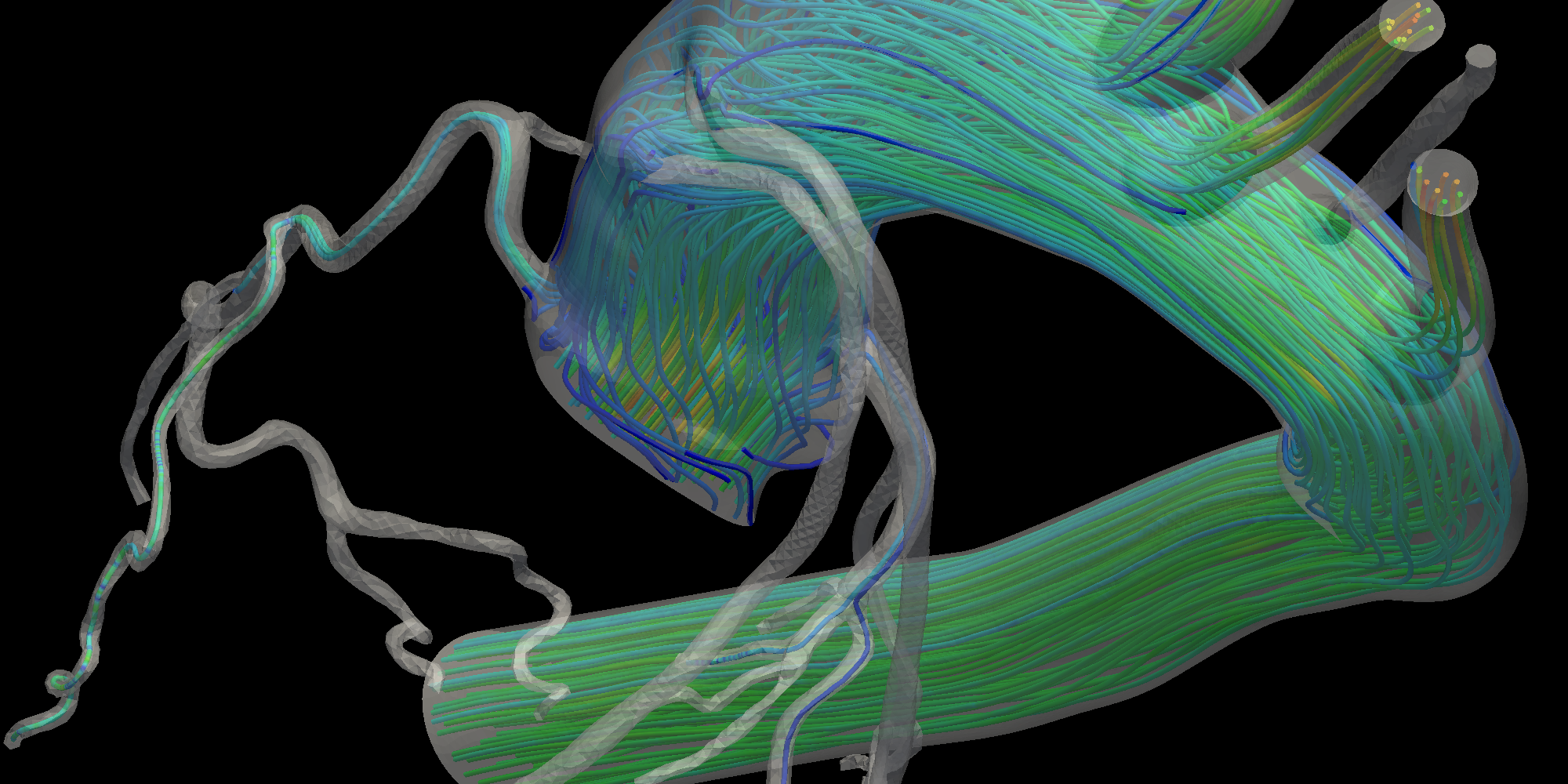

CABG 模拟血流

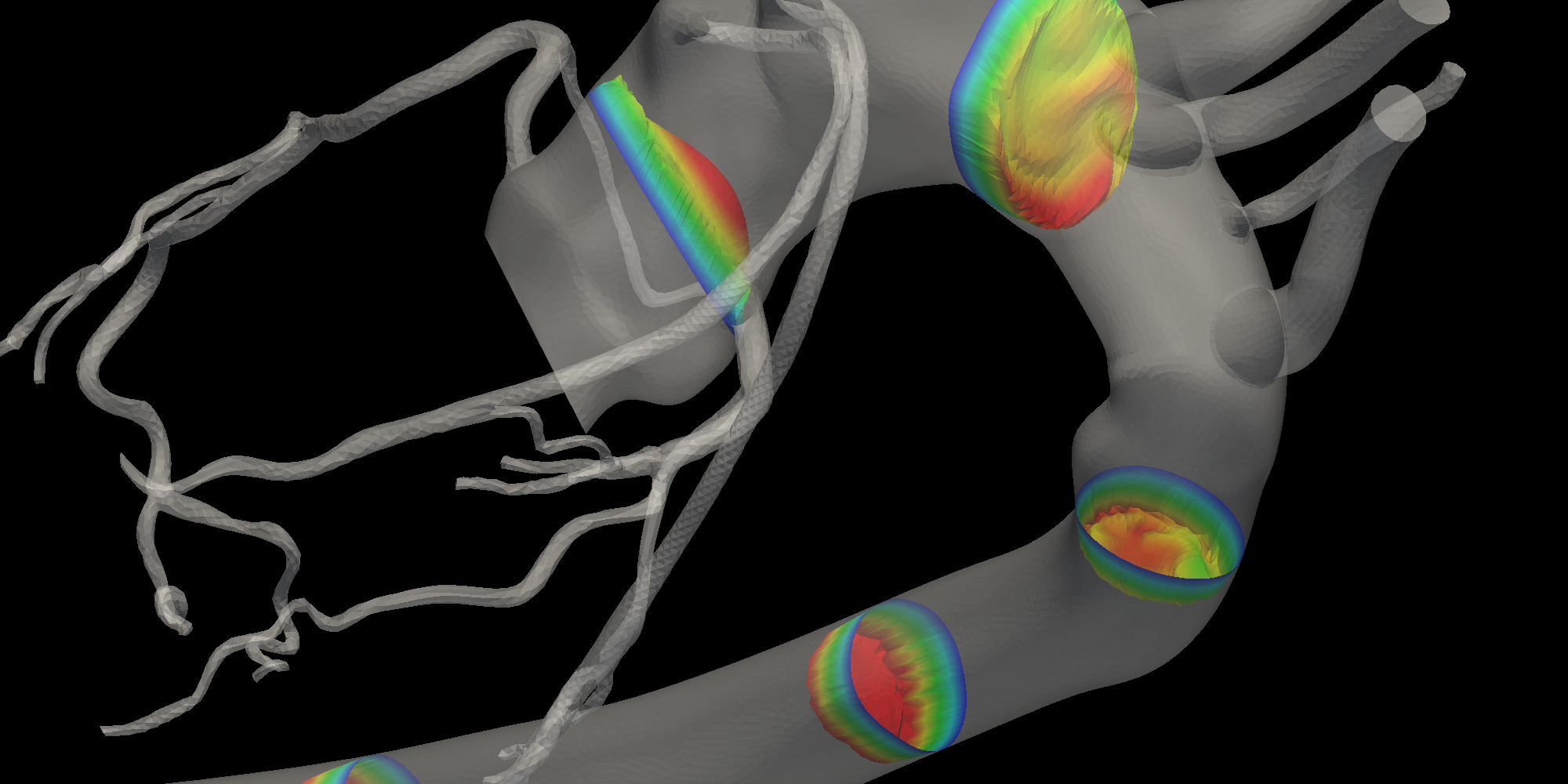

CABG 模拟血流速度分布

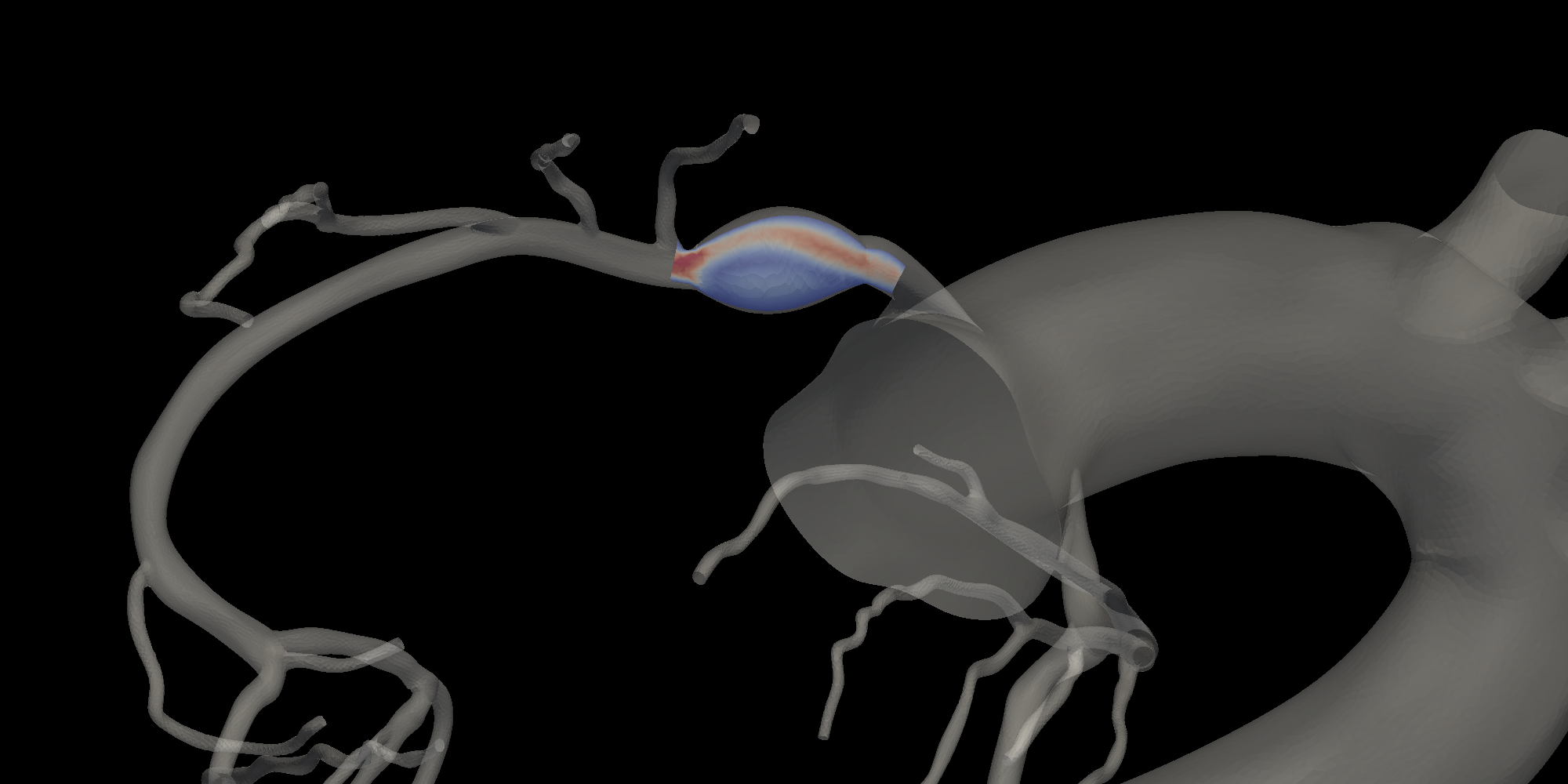

冠状动脉瘤的血流速度

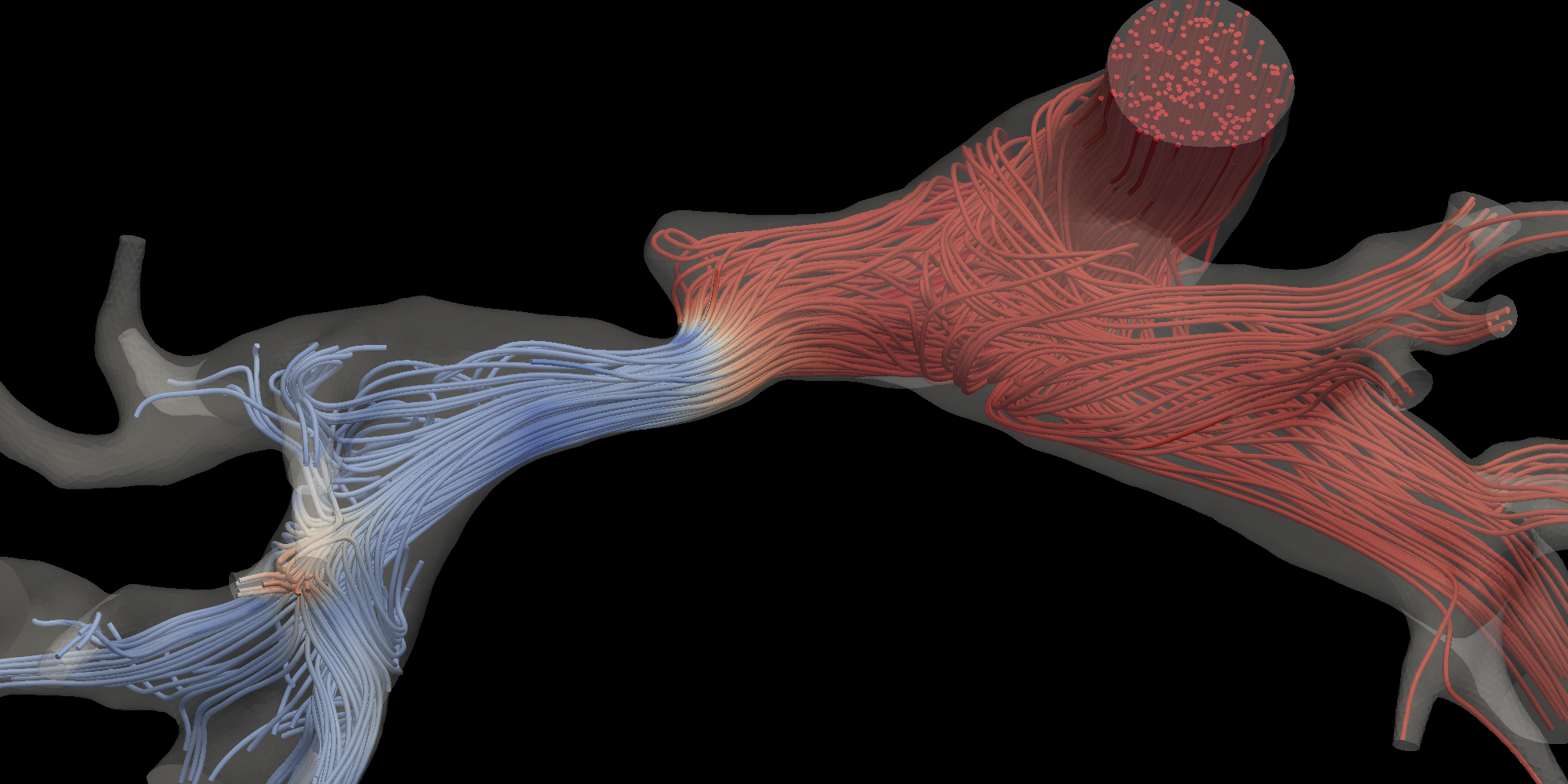

半方坦腔静脉肺动脉连接术

血管模型库

简介

The Vascular Model Repository, SimVascular 的姊妹项目,是一个包含正常和患病人类心血管和肺部解剖结构以及各种生理状态的输入和输出边界条件的计算模型库。存储库中的大多数模型都是使用 SimVascular 创建的.

目标

这些模型可用于模拟心血管和肺部固体和流体力学,并将提供空间和时间解析的基准解决方案,可供学术、政府和行业研究人员用来验证其计算方法。SimVascular 项目提供了一个开源模拟包,以配合模型存储库中提供的数据。

超算网关

The SimVascular Supercomputing Gateway provides access to High-Performance Computing (HPC) clusters for running simulations using SimVascular CFD solvers. Simulations benefit from the performance levels that only large-scale HPC systems can offer and typically run an order of magnitude faster than on most workstations.

新闻

Event

JUNE 11 - 14, 2024

Takes place in Lake Geneva, Wisconsin
Event

MAY 3 - 5, 2023

Takes place in Paris, France
Event

JUNE 4 - 8, 2023

Takes place in Vail, Colorado

业界支持

SimVascular 团队可通过与医疗设备设计和评估以及新软件功能实施相关的独立咨询为行业合作伙伴提供帮助。我们的团队拥有为成熟和早期行业合作伙伴执行有限元分析的经验,包括导管、瓣膜、支架、机械循环辅助装置和儿科心脏病学的新设备。如有疑问,请直接联系 abc@abc.com。
